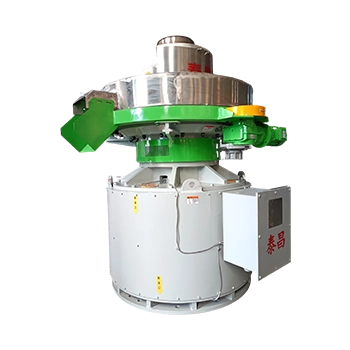

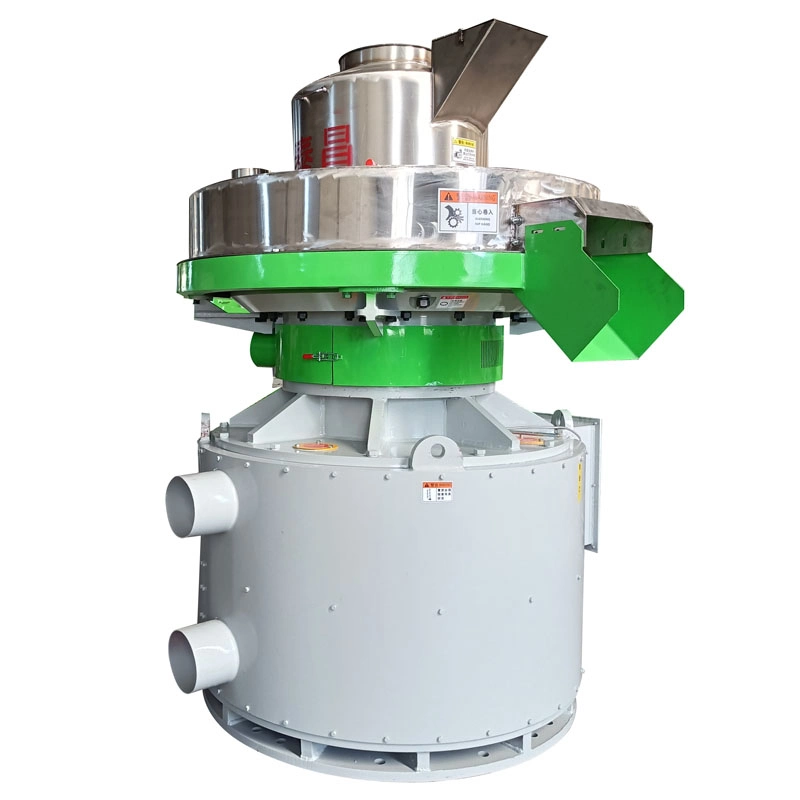

Pellet Mill
1. High output, low energy consumption; producing one ton of finished pellets requires only 45-50 kWh of electricity.
2. Eliminates the reducer. No reducer oil or maintenance costs.
3. Low replacement costs for wearing parts further reduce production costs.
4. Low starting current (e.g., for an 850-280 kW motor, the No-load current is only 8-10 A), eliminating no-load current losses and allowing more motor power to be used in production.
5. Variable frequency starting control and PLC programming enable remote operation and real-time monitoring.
6. Our company offers a six-year warranty on the main motor for all purchases of our permanent magnet direct-drive pellet mill, setting an industry precedent.

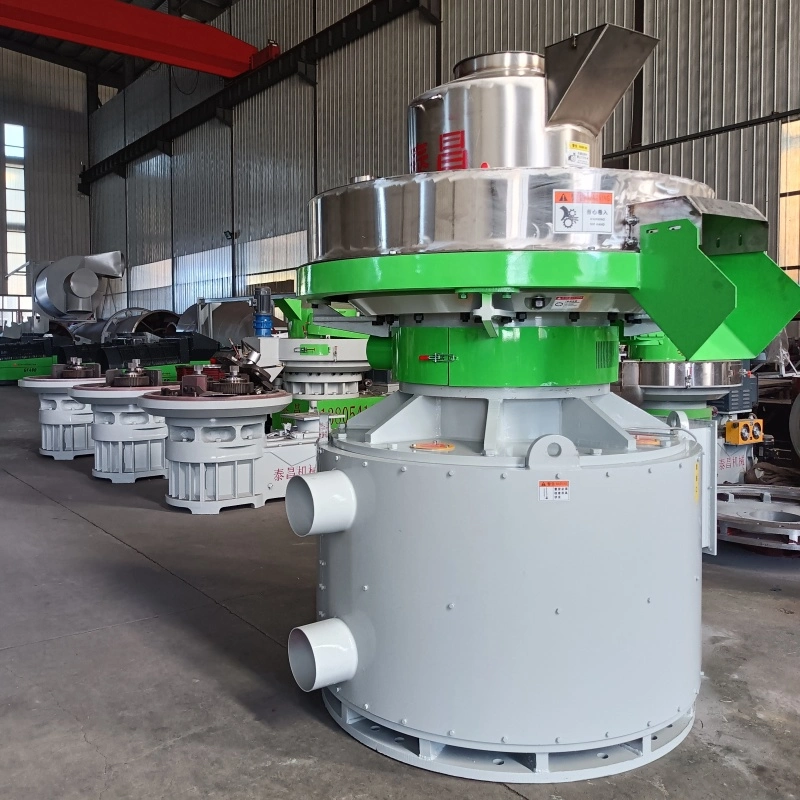

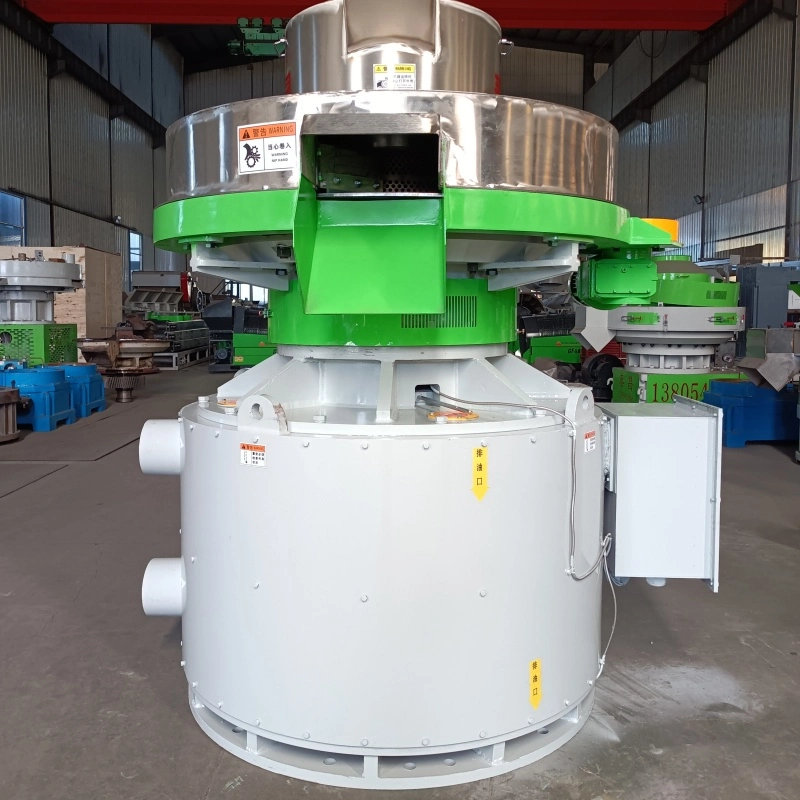

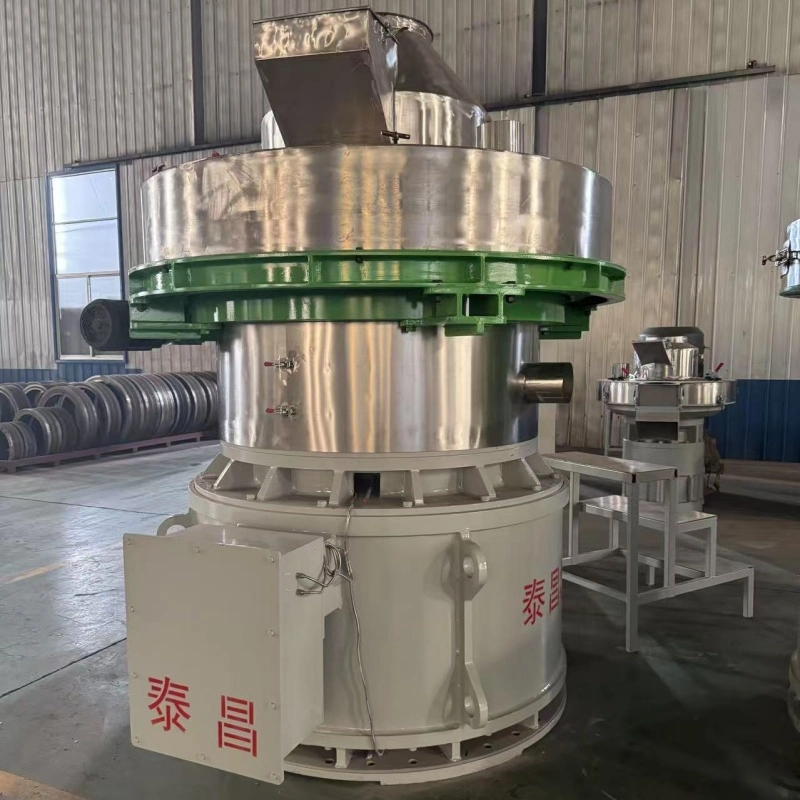

The cover of the inlet and pellets collecting system of the Pellet Mill is made of stainless steel with high strength, anti-wear and corrosion resistance. The position of the outlet can be chosen at will.

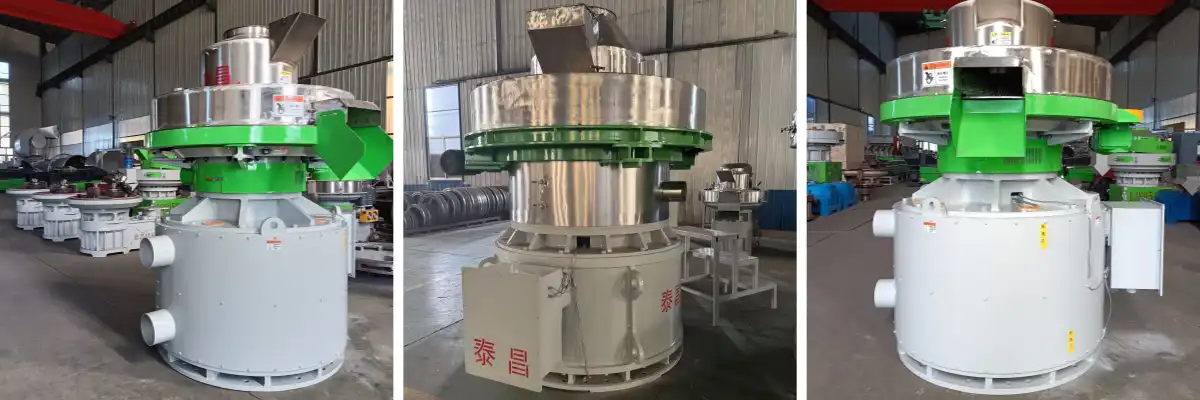

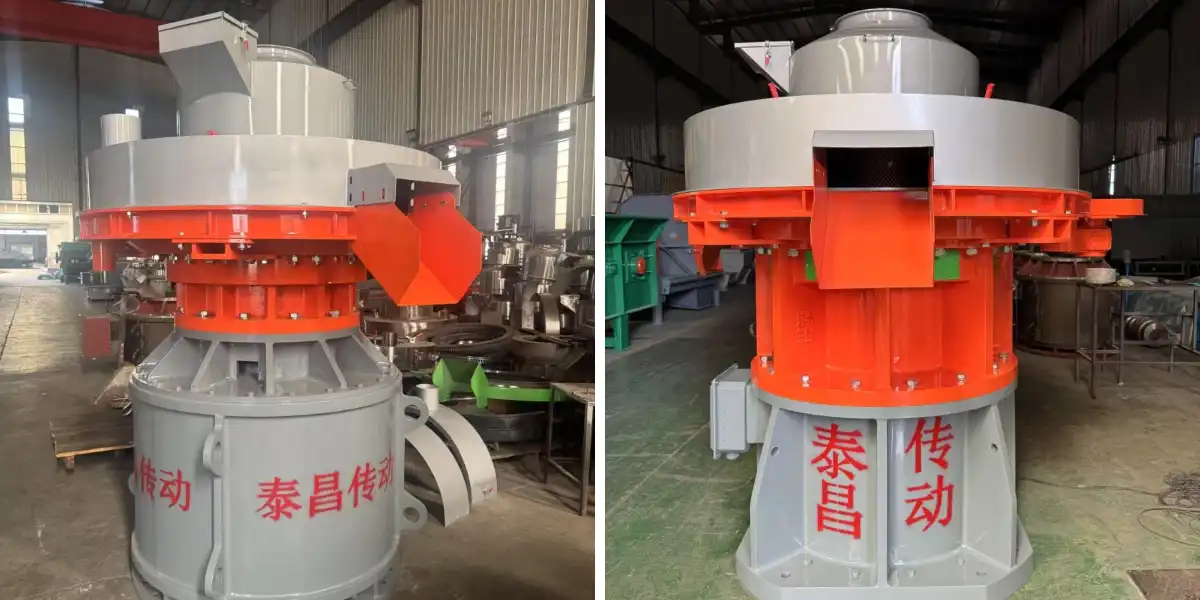

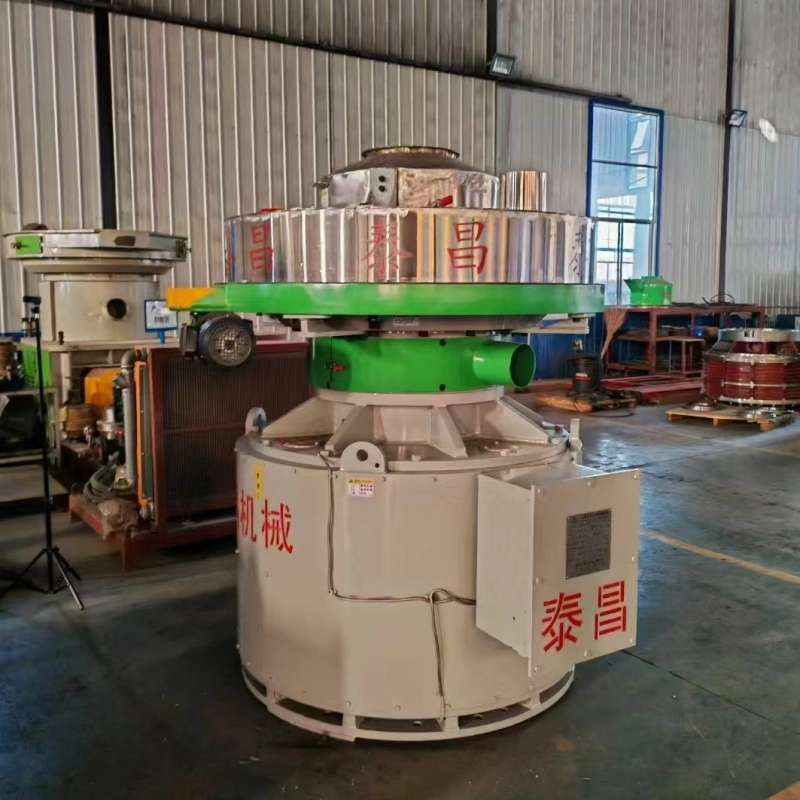

Compact structure, equipped with foot support, to stabilize the center of gravity of the mechanism. The duct ventilation cooling system or the independent fan cooling system can be configured according to the environment.
A frequency converter control module is integrated into this motor. Unlike three-phase asynchronous motors, it can sustain an operating efficiency of over 90% within the 25%–100% load range. When running for extended periods, its efficiency surpasses that of conventional three-phase asynchronous motors by 10% to 30%. Additionally, it features minimal inrush current during startup—this advantage better safeguards the motor’s insulation system and extends the motor’s service life.
To guarantee the motor operates safely and stably, it is outfitted with a range of protective mechanisms. These include a closed-loop control circuit and a temperature control system, both of which work together to mitigate operational risks.
Parameters
Model | Power（kw） | Capacity（t/h) | Motor cooling method |
ZQLKJ560 | 150+2.2+2.2+2.2 | 1.5-2.5 | Air cooling |
ZQLKJ700 | 185+2.2+2.2+2.2 | 3-4 | Water cooling |
ZQLKJ850 | 280+2.2+2.2+2.2 | 4-5 | Water cooling |
ZQLKJ960 | 355+2.2+2.2+2.2 | 6-7 | Water cooling |

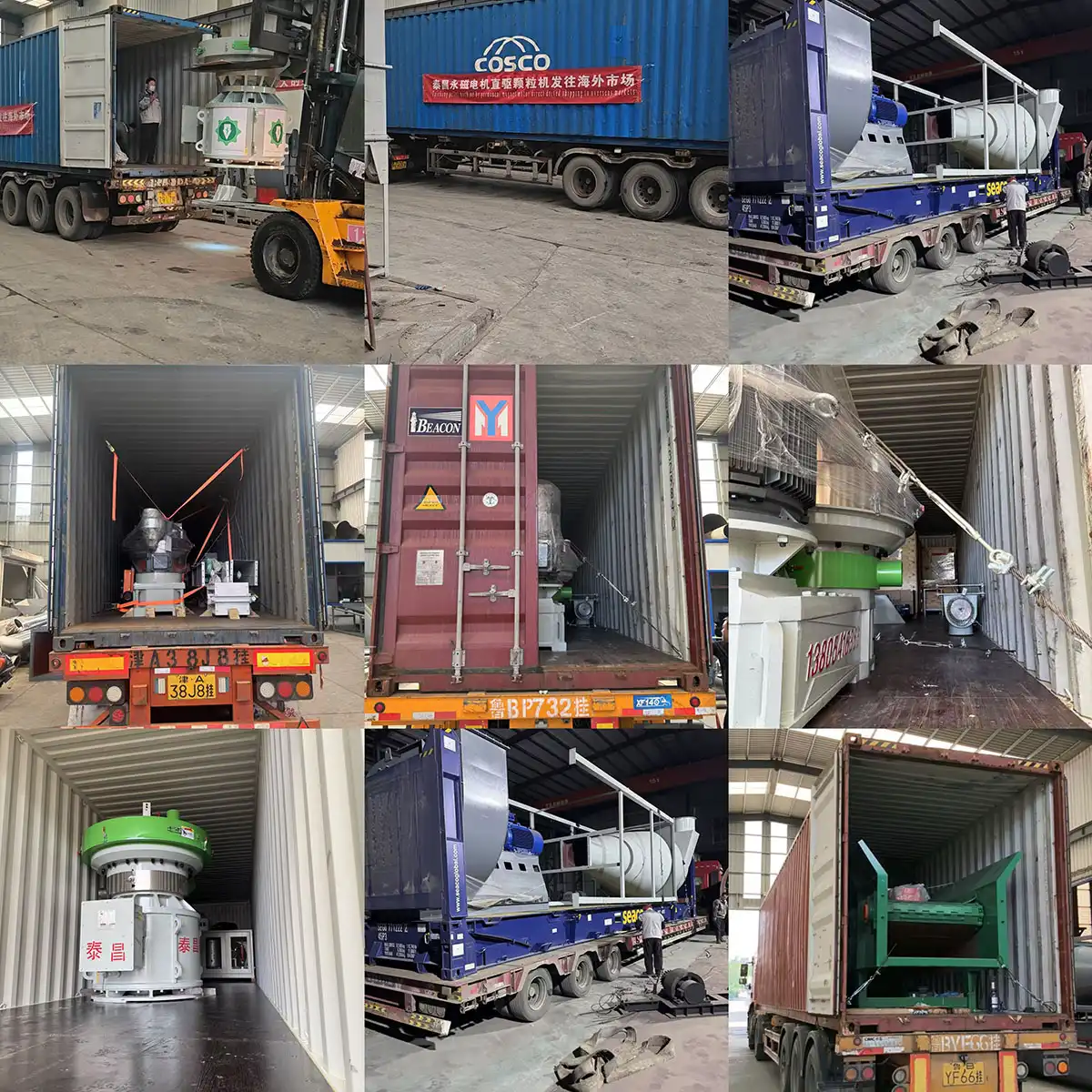

Packaging and Shipping

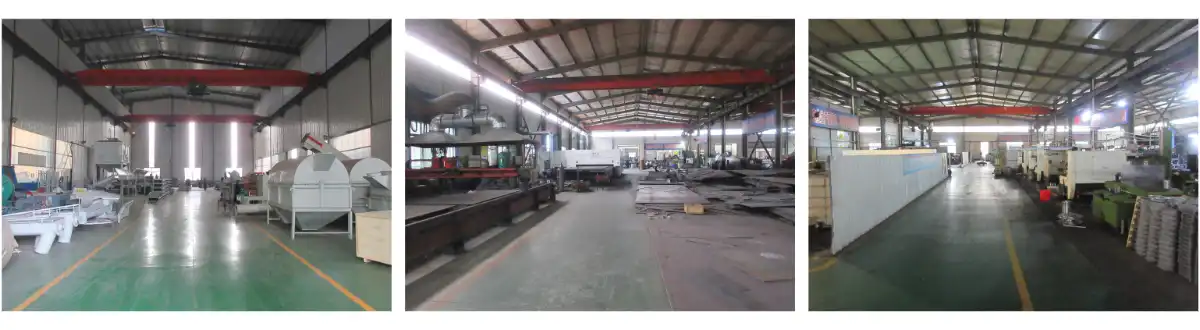

About us
Jinan Taichang Transmission Machinery Co., Ltd. was established in 2004 with a registered capital of 20 million yuan. It is a modern machinery manufacturer integrating R&D and production. Our products have passed ISO9001:2000 international quality management system certification, CE certification, and other qualifications.
Product range involve biomass wood pellet machine,animal feed pellet machine,grinding machine,crusher,mixer,dryer,cooling equipments and packing machines.
